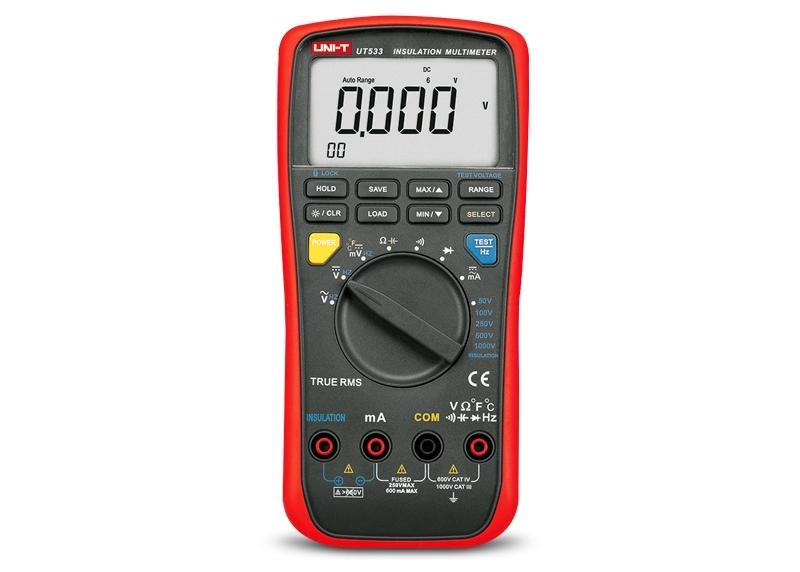

Specifications Range UT533
Insulation resistance 0.1MΩ~2GΩ ±(5%+5)
Output voltage 50~1000V –
AC voltage (V) 6V~1000V ±(2%+3）
DC voltage (V) 6mV~1000V ±(0.3%+4）
AC Current 60mA ~600mA ±(1.5%+2）
DC Current 60mA ~600mA ±(1.0%+2)
Resistance (Ω) 600Ω~40MΩ ±(1.5%+3)
Capacitance (F) 10nF~100uF ±(3%+5)
Frequency (Hz) 60Hz~1MHz ±(0.1%+3)
Temperature(℃) -40℃ ~ 537℃ ±(1%+10)
Features
Display count 5999
Diode & Continuity √
Dual display √
Auto/Manual range √
Backlight √
MAX/MIN √
Low battery indication √
Auto power off √
Data hold √
Category ratings CAT III 1000V, CAT IV 600V
Certificates CE/RoHS
General Characteristics
Standard accessories Test lead, battery, Crocodile clip, K type thermal probe
Power 1.5V LR6 * 6
Display 81 * 46mm
Product size 96.7 * 202.8 * 46mm
Product net weight 505g
Standard quantity per carton 20 pcs
Standard carton measurement 460 * 400 * 368mm
